Benjamin Franklin — Experiments and Observations on Electricity Made at Philadelphia in America

Additional Papers.

Mr. Peter Collinson, F.R.S. London.

Philadelphia, July 29, 1750

SIR,

As you first put us on electrical experiments, by sending to our library company a tube, with directions how to use it; and as our honourable proprietary enabled us to carry those experiments to a greater height, by his generous present of a compleat electrical apparatus; 'tis fit that both should know from time to time what progress we make. It was in this view I wrote and sent you my former papers on this subject, desiring, that as I had not the honour of a direct correspondence with that bountiful benefactor to our library, they might be communicated to him through your hands. In the same view I write, and send you this additional paper. If it happens to bring you nothing new (which may well be, considering the number of ingenious men in Europe, continually engaged in the same researches) at least it will show, that the instruments, put into our hands, are not neglected; and, that if no valuable discoveries are made by us, whatever the cause may be, it is not want of industry and application.

I am, Sir,

Your much obliged

Humble Servant,

B. FRANKLIN.

OPINIONS and CONJECTURES,
Concerning the Properties and Effects of the electrical Matter, arising from Experiments and Observations, made in Philadelphia, 1749.

§ 1. The electrical matter consists of particles extreamly subtile, since it can permeate common matter, even the densest metals, with such ease and freedom, as not to receive any perceptible resistance.

2. If any one should doubt, whether the electrical matter passes thro' the substance of bodies, or only over and along their surfaces, a shock from an electrified large glass jar, taken thro' his own body, will probably convince him.

3. Electrical matter differs from common matter in this, that the parts of the latter mutually attract, those of the former mutually repel, each other. Hence the appearing divergency in a stream of electrified effluvia.

4. But tho' the particles of electrical matter do repel each other, they are strongly attracted by all other matter. [7]

5. From these three things, the extreme subtilty of the electrical matter, the mutual repulsion of its parts, and the strong attraction between them and other matter, arise this effect, that when a quantity of electrical matter, is applied to a mass of common matter, of any bigness or length within our observation (which has not already got its quantity) it is immediately and equally diffused through the whole.

6. Thus common matter is a kind of spunge to the electrical fluid. And as a spunge would receive no water, if the parts of water were not smaller than the pores of the spunge; and even then but slowly, if there were not a mutual attraction between those parts and the parts of the spunge; and would still imbibe it faster, if the mutual attraction among the parts of the water did not impede, some force being required to separate them; and fastest, if, instead of attraction, there were a mutual repulsion among those parts, which would act in conjunction with the attraction of the spunge. So is the case between the electrical and common matter.

7. But in common matter there is (generally) as much of the electrical, as it will contain within its substance. If more is added, it lies without upon the surface, and forms what we call an electrical atmosphere: and then the body is said to be electrified.

8. 'Tis supposed, that all kinds of common matter do not attract and retain the electrical, with equal strength and force; for reasons to be given hereafter. And that those called electrics per se, as glass, &c. attract and retain it strongest, and contain the greatest quantity.

9. We know that the electrical fluid is in common matter, because we can pump it out by the globe or tube. We know that common matter has near as much as it can contain, because, when we add a little more to any protion of it, the additional quantity does not enter, but forms an electrical atmosphere. And we know that common matter has not (generally) more than it can contain, otherwise all loose portions of it would repel each other, as they constantly do when they have electric atmospheres.

10. The beneficial uses of this electrical fluid in the creation, we are not yet well acquainted with, though doubtless such there are, and those very considerable; but we may see some pernicious consequences, that would attend a much greater proportion of it. For had this globe we live on as much of it in proportion, as we can give to a globe of iron, wood, or the like, the particles of dust and other light matters that get loose from it, would, by virtue of their separate electrical atmospheres, not only repel each other, but be repelled from the earth, and not easily be brought to unite with it again; whence our air would continually be more and more clogged with foreign matter, and grow unfit for respiration. This affords another occasion of adoring that wisdom which has made all things by weight and measure!

11. If a piece of common matter be supposed intirely free from electrical matter, and a single particle of the latter be brought nigh, 'twill be attracted and enter the body, and take place in the center, or where the attraction is every way equal. If more particles enter, they take their places where the balance is equal between the attraction of the common matter and their own mutual repulsion. 'Tis supposed they form triangles, whose sides shorten as their number increases; 'till the common matter has drawn in so many, that its whole power of compressing those triangles by attraction, is equal to their whole power of expanding themselves by repulsion; and then will such piece of matter receive no more.

12. When part of this natural proportion of electrical fluid, is taken out of a piece of common matter, the triangles formed by the remainder, are supposed to widen by the mutual repulsion of the parts, until they occupy the whole piece.

13. When the quantity of electrical fluid taken from a piece of common matter is restored again, it enters, the expanded triangles being again compressed till there is room for the whole.

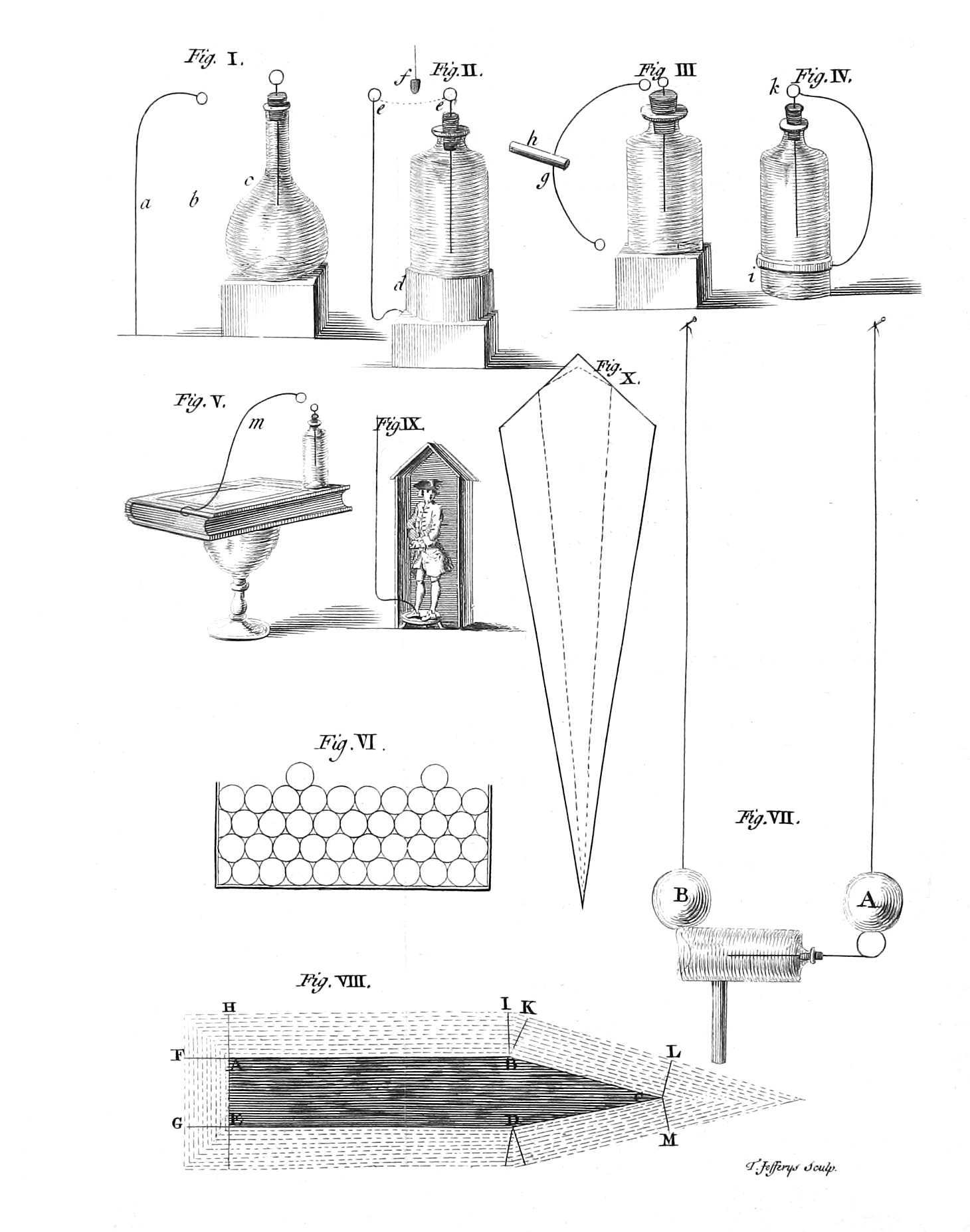

14. To explain this: take two apples, or two balls of wood or other matter, each having its own natural quantity of the electrical fluid. Suspend them by silk lines from the ceiling. Apply the wire of a well-charged vial, held in your hand, to one of them (A) Fig. 7. and it will receive from the wire a quantity of the electrical fluid; but will not imbibe it, being already full. The fluid therefore will flow round its surface, and form an electrical atmosphere. Bring A into contact with B, and half the electrical fluid is communicated, so that each has now an electrical atmosphere, and therefore they repel each other. Take away these atmospheres by touching the balls, and leave them in their natural state: then, having fixed a stick of sealing wax to the middle of the vial to hold it by, apply the wire to A, at the same time the coating touches B. Thus will a quantity of the electrical fluid be drawn out of B, and thrown on A. So that A will have a redundance of this fluid, which forms an atmosphere round it, and B an exactly equal deficiency. Now bring these balls again into contact, and the electrical atmosphere will not be divided between A and B, into two smaller atmospheres as before; for B will drink up the whole atmosphere of A, and both will be found again in their natural state.

15. The form of the electrical atmosphere is that of the body it surrounds. This shape may be rendered visible in a still air, by raising a smoke from dry rosin, dropt into a hot tea-spoon under the electrised body, which will be attracted and spread itself equaly on all sides, covering and concealing the body. And this form it takes, because it is attracted by all parts of the surface of the body, tho' it cannot enter the substance already replete. Without this attraction it would not remain round the body, but dissipate in the air.

16. The atmosphere of electrical particles surrounding an electrified sphere, is not more disposed to leave it or more easily drawn off from any one part of the sphere than from another, because it is equally attracted by every part. But that is not the case with bodies of any other figure. From a cube it is more easily drawn at the corners than at the plane sides, and so from the angles of a body of any other form, and still most easily from the angle that is most acute. Thus if a body shaped as A, B, C, D, E, in Fig. 8, be electrified, or have an electrical atmosphere communicated to it, and we consider every side as a base on which the particles rest and by which they are attracted, one may see, by imagining a line from A to F, and another from E to G, that the portion of the atmosphere included in F, A, E, G, has the line A, E, for its basis. So the portion of atmosphere included in H, A, B, I, has the line A, B, for its basis. And likewise the portion included in K, B, C, L, has B, C, to rest on; and so on the other side of the figure. Now if you would draw off this atmosphere with any blunt smooth body, and approach the middle of the side A, B, you must come very near before the force of your attracter exceeds the force or power with which that side holds its atmosphere. But there is a small portion between I, B, K, that has less of the surface to rest on, and to be attracted by, than the neighbouring portions, while at the same time there is a mutual repulsion between its particles and the particles of those portions, therefore here you can get it with more ease or at a greater distance. Between F, A, H, there is a larger portion that has yet a less surface to rest on and to attract it; here therefore you can get it away still more easily. But easiest of all between L, C, M, where the quantity is largest, and the surface to attract and keep it back the least. When you have drawn away one of these angular portions of the fluid, another succeeds in its place, from the nature of fluidity and the mutual repulsion beforementioned; and so the atmosphere continues flowing off at such angle, like a stream, till no more is remaining. The extremities of the portions of atmosphere over these angular parts are likewise at a greater distance from the electrified body, as may be seen by the inspection of the above figure; the point of the atmosphere of the angle C, being much farther from C, than any other part of the atmosphere over the lines C, B, or B, A: And besides the distance arising from the nature of the figure, where the attraction is less, the particles will naturally expand to a greater distance by their mutual repulsion. On these accounts we suppose electrified bodies discharge their atmospheres upon unelectrified bodies more easily and at a greater distance from their angles and points than from their smooth sides.—Those points will also discharge into the air, when the body has too great an electrical atmosphere, without bringing any non-electric near, to receive what is thrown off: For the air, though an electric per se, yet has always more or less water and other non-electric matters mixed with it; and these attract and receive what is so discharged.

17. But points have a property, by which they draw on as well as throw off the electrical fluid, at greater distances than blunt bodies can. That is, as the pointed part of an electrified body will discharge the atmosphere of that body, or communicate it farthest to another body, so the point of an unelectrified body, will draw off the electrical atmosphere from an electrified body, farther than a blunter part of the same unelectrified body will do. Thus a pin held by the head, and the point presented to an electrified body, will draw off its atmosphere at a foot distance; where if the head were presented instead of the point, no such effect would follow. To understand this, we may consider, that if a person standing on the floor would draw off the electrical atmosphere from an electrified body, an iron crow and a blunt knitting kneedle held alternately in his hand and presented for that purpose, do not draw with different forces in proportion to their different masses. For the man, and what he holds in his hand, be it large or small, are connected with the common mass of unelectrified matter; and the force with which he draws is the same in both cases, it consisting in the different proportion of electricity in the electrified body and that common mass. But the force with which the electrified body retains its atmosphere by attracting it, is proportioned to the surface over which the particles are placed; i.e. four square inches of that surface retain their atmosphere with four times the force that one square inch retains its atmosphere. And as in plucking the hairs from the horse's tail, a degree of strength insufficient to pull away a handful at once, could yet easily strip it hair by hair; so a blunt body presented cannot draw off a number of particles at once, but a pointed one, with no greater force, takes them away easily, particle by particle.

18. These explanations of the power and operation of points, when they first occurr'd to me, and while they first floated in my mind, appeared perfectly satisfactory; but now I have wrote them, and consider'd them more closely in black and white, I must own I have some doubts about them: yet as I have at present nothing better to offer in their stead, I do not cross them out: for even a bad solution read, and its faults discover'd, has often given rise to a good one in the mind of an ingenious reader.

19. Nor is it of much importance to us, to know the manner in which nature executes her laws; 'tis enough if we know the laws themselves. 'Tis of real use to know, that china left in the air unsupported will fall and break; but how it comes to fall, and why it breaks, are matters of speculation. 'Tis a pleasure indeed to know them, but we can preserve our china without it.

20. Thus in the present case, to know this power of points, may possibly be of some use to mankind, though we should never be able to explain it. The following experiments, as well as those in my first paper, show this power. I have a large prime conductor made of several thin sheets of Fuller's pasteboard form'd into a tube, near 10 feet long and a foot diameter. It is cover'd with Dutch emboss'd paper, almost totally gilt. This large metallic surface supports a much greater electrical atmosphere than a rod of iron of 50 times the weight would do. It is suspended by silk lines, and when charg'd will strike at near two inches distance, a pretty hard stroke so as to make one's knuckle ach. Let a person standing on the floor present the point of a needle at 12 or more inches distance from it, and while the needle is so presented, the conductor cannot be charged, the point drawing off the fire as fast as it is thrown on by the electrical globe. Let it be charged, and then present the point at the same distance, and it will suddenly be discharged. In the dark you may see a light on the point, when the experiment is made. And if the person holding the point stands upon wax, he will be electrified by receiving the fire at that distance. Attempt to draw off the electricity with a blunt body, as a bolt of iron round at the end and smooth (a silversmith's iron punch, inch-thick, is what I use) and you must bring it within the distance of three inches before you can do it, and then it is done with a stroke and crack. As the pasteboard tube hangs loose on silk lines, when you approach it with the punch iron, it likewise will move towards the punch, being attracted while it is charged; but if at the same instant a point be presented as before, it retires again, for the point discharges it. Take a pair of large brass scales, of two or more feet beam, the cords of the scales being silk. Suspend the beam by a packthread from the cieling, so that the bottom of the scales may be about a foot from the floor: The scales will move round in a circle by the untwisting of the packthread. Set the iron punch on the end upon the floor, in such a place as that the scales may pass over it in making their circle: Then electrify one scale by applying the wire of a charged phial to it. As they move round, you see that scale draw nigher to the floor, and dip more when it comes over the punch; and if that be placed at a proper distance, the scale will snap and discharge its fire into it. But if a needle be stuck on the end of the punch, its point upwards, the scale, instead of drawing nigh to the punch and snapping, discharges its fire silently through the point, and rises higher from the punch. Nay, even if the needle be placed upon the floor near the punch, its point upwards, the end of the punch, tho' so much higher than the needle, will not attract the scale and receive its fire, for the needle will get it and convey it away, before it comes nigh enough for the punch to act. And this is constantly observable in these experiments, that the greater quantity of electricity on the pasteboard tube, the farther it strikes or discharges its fire, and the point likewise will draw it off at a still greater distance.

Now if the fire of electricity and that of lightening be the same, as I have endeavour'd to show at large in a former paper, this pasteboard tube and these scales may represent electrified clouds. If a tube of only 10 feet long will strike and discharge its fire on the punch at two or three inches distance, an electrified cloud of perhaps 10,000 acres, may strike and discharge on the earth at a proportionably greater distance. The horizontal motion of the scales over the floor, may represent the motion of the clouds over the earth; and the erect iron punch, a hill or high building; and then we see how electrified clouds passing over hills or high buildings at too great a height to strike, may be attracted lower till within their striking distance. And lastly, if a needle fix'd on the punch with its point upright, or even on the floor below the punch, will draw the fire from the scale silently at a much greater than the striking distance, and so prevent its descending towards the punch; or if in its course it would have come nigh enough to strike, yet being first deprived of its fire it cannot, and the punch is thereby secured from the stroke. I say, if these things are so, may not the knowledge of this power of points be of use to mankind, in preserving houses, churches, ships, &c. from the stroke of lightning, by directing us to fix on the highest parts of those edifices, upright rods of iron made sharp as a needle, and gilt to prevent rusting, and from the foot of those rods a wire down the outside of the building into the ground, or down round one of the shrouds of a ship, and down her side till it reaches the water? Would not these pointed rods probably draw the electrical fire silently out of a cloud before it came nigh enough to strike, and thereby secure us from that most sudden and terrible mischief?

21. To determine the question, whether the clouds that contain lightning are electrified or not, I would propose an experiment to be try'd where it may be done conveniently. On the top of some high tower or steeple, place a kind of sentry-box, (as in Fig. 9.) big enough to contain a man and an electrical stand. From the middle of the stand, let an iron rod rise and pass bending out of the door, and then upright 20 or 30 feet, pointed very sharp at the end. If the electrical stand be kept clean and dry, a man standing on it when such clouds are passing low, might be electrified and afford sparks, the rod drawing fire to him from a cloud. If any danger to the man should be apprehended (though I think there would be none) let him stand on the floor of his box, and now and then bring near to the rod, the loop of a wire that has one end fastened to the leads, he holding it by a wax handle; so the sparks, if the rod is electrified, will strike from the rod to the wire, and not affect him.

22. Before I leave this subject of lightning, I may mention some other similarities between the effects of that, and these of electricity. Lightning has often been known to strike people blind. A pigeon that we struck dead to appearance by the electrical shock, recovering life, droop'd about the yard several days, eat nothing though crumbs were thrown to it, but declined and died. We did not think of its being deprived of sight; but afterwards a pullet struck dead in like manner, being recovered by repeatedly blowing into its lungs, when set down on the floor, ran headlong against the wall, and on examination appeared perfectly blind. Hence we concluded that the pigeon also had been absolutely blinded by the shock. The biggest animal we have yet killed or try'd to kill with the electrical stroke, was a well-grown pullet.

23. Reading in the ingenious Dr. Hales's account of the thunder storm at Stretham, the effect of the lightning in stripping off all the paint that had covered a gilt moulding of a pannel of wainscot, without hurting the rest of the paint, I had a mind to lay a coat of paint over the filleting of gold on the cover of a book, and try the effect of a strong electrical flash sent through that gold from a charged sheet of glass. But having no paint at hand, I pasted a narrow strip of paper over it; and when dry, sent the flash through the gilding; by which the paper was torn off from end to end, with such force, that it was broke in several places, and in others brought away part of the grain of the Turky-leather in which it was bound; and convinced me, that had it been painted, the paint would have been stript off in the same manner with that on the wainscot at Stretham.

24. Lightning melts metals, and I hinted in my paper on that subject, that I suspected it to be a cold fusion; I do not mean a fusion by force of cold, but a fusion without heat. We have also melted gold, silver, and copper, in small quantities, by the electrical flash. The manner is this: Take leaf gold, leaf silver, or leaf gilt copper, commonly called leaf brass or Dutch gold: cut off from the leaf long narrow strips the breadth of a straw. Place one of these strips between two strips of smooth glass that are about the width of your finger. If one strip of gold, the length of the leaf, be not long enough for the glass, add another to the end of it, so that you may have a little part hanging out loose at each end of the glass. Bind the pieces of glass together from end to end with strong silk thread; then place it so as to be part of an electrical circle, (the ends of gold hanging out being of use to join with the other parts of the circle) and send the flash through it, from a large electrified jar or sheet of glass. Then if your strips of glass remain whole, you will see that the gold is missing in several places, and instead of it a metallic stain on both the glasses; the stains on the upper and under glass exactly similar in the minutest stroke, as may be seen by holding them to the light; the metal appeared to have been not only melted, but even vitrified, or otherwise so driven into the pores of the glass, as to be protected by it from the action of the strongest Aqua Fortis and Ag: Regia. I send you enclosed two little pieces of glass with these metallic stains upon them, which cannot be removed without taking part of the glass with them. Sometimes the stain spreads a little wider than the breadth of the leaf, and looks brighter at the edge, as by inspecting closely you may observe in these. Sometimes the glass breaks to pieces: once the upper glass broke into a thousand pieces, looking like coarse salt. These pieces I send you, were stain'd with Dutch gold. True gold makes a darker stain, somewhat reddish; silver, a greenish stain. We once took two pieces of thick looking-glass, as broad as a Gunter's scale, and 6 inches long; and placing leaf gold between them, put them betwixt two smoothly plain'd pieces of wood, and fix'd them tight in a book-binder's small press; yet though they were so closely confined, the force of the electrical shock shivered the glass into many pieces. The gold was melted and stain'd into the glass as usual. The circumstances of the breaking of the glass differ much in making the experiment, and sometimes it does not break at all: but this is constant, that the stains in the upper and under pieces are exact counterparts of each other. And though I have taken up the pieces of glass between my fingers immediately after this melting, I never could perceive the least warmth in them.

25. In one of my former papers, I mention'd, that gilding on a book, though at first it communicated the shock perfectly well, yet fail'd after a few experiments, which we could not account for. We have since found, that one strong shock breaks the continuity of the gold in the filleting, and makes it look rather like dust of gold, abundance of its parts being broken and driven off; and it will seldom conduct above one strong shock. Perhaps this may be the reason; when there is not a perfect continuity in the circle, the fire must leap over the vacancies; there is a certain distance which it is able to leap over according to its strength; if a number of small vacancies, though each be very minute, taken together exceed that distance, it cannot leap over them, and so the shock is prevented.

26. From the before mentioned law of electricity, that points, as they are more or less acute, draw on and throw off the electrical fluid with more or less power, and at greater or less distances, and in larger or smaller quantities in the same time, we may see how to account for the situation of the leaf of gold suspended between two plates, the upper one continually electrified, the under one in a person's hand standing on the floor. When the upper plate is electrified, the leaf is attracted and raised towards it, and would fly to that plate were it not for its own points. The corner that happens to be uppermost when the leaf is rising, being a sharp point, from the extream thinness of the gold, draws and receives at a distance a sufficient quantity of the electrical fluid to give itself an electrical atmosphere, by which its progress to the upper plate is stopt, and it begins to be repelled from that plate, and would be driven back to the under plate, but that its lowest corner is likewise a point, and throws off or discharges the overplus of the leaf's atmosphere, as fast as the upper corner draws it on. Were these two points perfectly equal in acuteness, the leaf would take place exactly in the middle space, for its Weight is a trifle, compared to the power acting on it: But it is generally nearest the unelectrified plate, because, when the leaf is offered to the electrified plate at a distance, the sharpest point is commonly first affected and raised towards it; so that point, from its greater acuteness, receiving the fluid faster than its opposite can discharge it at equal distances, it retires from the electrified plate, and draws nearer to the unelectrified plate, till it comes to a distance where the discharge can be exactly equal to the receipt, the latter being lessened, and the former encreased; and there it remains as long as the globe continues to supply fresh electrical matter. This will appear plain, when the difference of acuteness in the corners is made very great. Cut a piece of Dutch gold (which is fittest for these experiments on account of its greater strength) into the form of Fig. 10 the upper corner a right angle, the two next obtuse angles, and the lowest a very acute one; and bring this on your plate under the electrified plate, in such a manner as that the right-angled part may be first raised (which is done by covering the acute part with the hollow of your hand) and you will see this leaf take place much nearer to the upper than to the under plate; because, without being nearer, it cannot receive so fast at its right-angled point, as it can discharge at its acute one. Turn this leaf with the acute part uppermost, and then it takes place nearest the unelectrified plate, because otherwise it receives faster at its acute point than it can discharge at its right-angled one. Thus the difference of distance is always proportioned to the difference of acuteness. Take care in cutting your leaf to leave no little ragged particles on the edges, which sometimes form points where you would not have them. You may make this figure so acute below and blunt above, as to need no under plate, it discharging fast enough into the air. When it is made narrower, as the figure between the pricked lines, we call it the Golden Fish, from its manner of acting. For if you take it by the tail, and hold it at a foot or greater horizontal distance from the prime conductor, it will, when let go, fly to it with a brisk but wavering motion, like that of an eel through the water; it will then take place under the prime conductor, at perhaps a quarter or half an inch distance, and keep a continual shaking of its tail like a fish, so that it seems animated. Turn its tail towards the prime conductor, and then it flies to your finger, and seems to nibble it. And if you hold a plate under it at six or eight inches distance, and cease turning the Globe, when the electrical atmosphere of the conductor grows small, it will descend to the plate and swim back again several times with the same fish-like motion, greatly to the entertainment of spectators. By a little practice in blunting or sharpening the heads or tails of these figures, you may make them take place as desired, nearer, or farther from the electrified plate.

27. It is said in section 8, of this paper, that all kinds of common matter are supposed not to attract the electrical fluid with equal strength; and that those called electrics per se, as glass, &c. attract and retain it strongest, and contain the greatest quantity. This latter position may seem a paradox to some, being contrary to the hitherto received opinion; and therefore I shall now endeavour to explain it.

28. In order to this, let it first be considered, that we cannot, by any means we are yet acquainted with, force the electrical fluid thro' glass. I know it is commonly thought that it easily pervades glass, and the experiment of a feather suspended by a thread in a bottle hermetically sealed, yet moved by bringing a nibbed tube near the outside of the bottle, is alledged to prove it. But, if the electrical fluid so easily pervades glass, how does the vial become charged (as we term it) when we hold it in our hands? Would not the fire thrown in by the wire pass through to our hands, and so escape into the floor? Would not the bottle in that case be left just as we found it, uncharged, as we know a metal bottle so attempted to be charged would be? Indeed, if there be the least crack, the minutest solution of continuity in the glass, though it remains so tight that nothing else we know of will pass, yet the extremely subtile electrical fluid flies through such a crack with the greatest freedom, and such a bottle we know can never be charged: What then makes the difference between such a bottle and one that is sound, but this, that the fluid can pass through the one, and not through the other? [8]

29. It is true there is an experiment that at first sight would be apt to satisfy a slight observer, that the fire thrown into the bottle by the wire, does really pass thro' the glass. It is this: place the bottle on a glass stand, under the prime conductor; suspend a bullet by a chain from the prime conductor, till it comes within a quarter of an inch right over the wire of the bottle; place your knuckle on the glass stand, at just the same distance from the coating of the bottle, as the bullet is from its wire. Now let the globe be turned, and you see a spark strike from the bullet to the wire of the bottle, and the same instant you see and feel an exactly equal spark striking from the coating on your knuckle, and so on spark for spark. This looks as if the whole received by the bottle was again discharged from it. And yet the bottle by this means is charged! [9] And therefore the fire that thus leaves the bottle, though the same in quantity, cannot be the very same fire that entered at the wire; for if it were, the bottle would remain uncharged.

30. If the fire that so leaves the bottle be not the same that is thrown in through the wire, it must be fire that subsisted in the bottle, (that is, in the glass of the bottle) before the operation began.

31. If so, there must be a great quantity in glass, because a great quantity is thus discharged even from very thin glass.

32. That this electrical fluid or fire is strongly attracted by glass, we know from the quickness and violence with which it is resumed by the part that had been deprived of it, when there is an opportunity. And by this, that we cannot from a mass of glass draw a quantity of electrical fire, or electrify the whole mass minus, as we can a mass of metal. We cannot lessen or increase its whole quantity, for the quantity it has it holds; and it has as much as it can hold. Its pores are filled with it as full as the mutual repellency of the particles will admit; and what is already in, refuses, or strongly repels, any additional quantity. Nor have we any way of moving the electrical fluid in glass, but one; that is, by covering part of the two surfaces of thin glass with non-electrics, and then throwing an additional quantity of this fluid on one surface, which spreading in the non-electric, and being bound by it to that surface, acts by its repelling force on the particles of the electrical fluid contained in the other surface, and drives them out of the glass into the non-electric on that side, from whence they are discharged, and then those added on the charged side can enter. But when this is done, there is no more in the glass, nor less than before, just as much having left it on one side as it received on the other.

33. I feel a want of terms here, and doubt much whether I shall be able to make this part intelligible. By the word surface, in this case, I do not mean mere length and breadth without thickness; but when I speak of the upper or under surface of a piece of glass, the outer or inner surface of the vial, I mean length, breadth, and half the thickness, and beg the favour of being so understood. Now, I suppose, that glass in its first principles, and in the Furnace, has no more of this electrical fluid than other common matter: That when it is blown, as it cools, and the particles of common fire leave it, its pores become a vacuum: That the component parts of glass are extremely small and fine, I guess from its never showing a rough face when it breaks, but always a polish; and from the smallness of its particles I suppose the pores between them must be exceeding small, which is the reason that Aqua-fortis, nor any other menstruum we have, can enter to separate them and dissolve the substance; nor is any fluid we know of, fine enough to enter, except common fire, and the electrical fluid. Now the departing fire leaving a vacuum, as aforesaid, between these pores, which air nor water are fine enough to enter and fill, the electrical fluid (which is every where ready in what we call the non-electrics, and in the non-electric Mixtures that are in the air,) is attracted in: yet does not become fixed with the substance of the glass, but subsists there as water in a porous stone, retained only by the attraction of the fixed parts, itself still loose and a fluid. But I suppose farther, that in the cooling of the glass, its texture becomes closest in the middle, and forms a kind of partition, in which the pores are so narrow, that the particles of the electrical fluid, which enter both surfaces at the same time, cannot go through, or pass and repass from one surface to the other, and so mix together; yet, though the particles of electrical fluid, imbibed by each surface, cannot themselves pass through to those of the other, their repellency can, and by this means they act on one another. The particles of the electrical fluid have a mutual repellency, but by the power of attraction in the glass they are condensed or forced nearer to each other. When the glass has received and, by its attraction, forced closer together so much of this electrified fluid, as that the power of attracting and condensing in the one, is equal to the power of expansion in the other, it can imbibe no more, and that remains its constant whole quantity; but each surface would receive more, if the repellency of what is in the opposite surface did not resist its entrance. The quantities of this fluid in each surface being equal, their repelling action on each other is equal; and therefore those of one surface cannot drive out those of the other: but, if a greater quantity is forced into one surface than the glass would naturally draw in; this increases the repelling power on that side, and overpowering the attraction on the other, drives out part of the fluid that had been imbibed by that surface, if there be any non-electric ready to receive it: such there is in all cases where glass is electrified to give a shock. The surface that has been thus emptied by having its electrical fluid driven out, resumes again an equal quantity with violence, as soon as the glass has an opportunity to discharge that over-quantity more than it could retain by attraction in its other surface, by the additional repellency of which the vacuum had been occasioned. For experiments favouring (if I may not say confirming) this hypothesis, I must, to avoid repetition, beg leave to refer you back to what is said of the electrical phial in my former papers.

34. Let us now see how it will account for several other appearances.—Glass, a body extremely elastic (and perhaps its elasticity may be owing in some degree to the subsisting of so great a quantity of this repelling fluid in its pores) must, when rubbed, have its rubbed surface somewhat stretched, or its solid parts drawn a little farther asunder, so that the vacancies in which the electrical fluid resides, become larger, affording room for more of that fluid, which is immediately attracted into it from the cushion or hand rubbing, they being supply'd from the common stock. But the instant the parts of the glass so open'd and fill'd have pass'd the friction, they close again, and force the additional quantity out upon the surface, where it must rest till that part comes round to the cushion again, unless some non electric (as the prime conductor) first presents to receive it. [10] But if the inside of the globe be lined with a non-electric, the additional repellency of the electrical fluid, thus collected by friction on the rubb'd part of the globe's outer surface, drives an equal quantity out of the inner surface into that non-electric lining, which receiving it, and carrying it away from the rubb'd part into the common mass, through the axis of the globe and frame of the machine, the new collected electrical fluid can enter and remain in the outer surface, and none of it (or a very little) will be received by the prime conductor. As this charg'd part of the globe comes round to the cushion again, the outer surface delivers its overplus fire into the cushion, the opposite inner surface receiving at the same time an equal quantity from the floor. Every electrician knows that a globe wet within will afford little or no fire, but the reason has not before been attempted to be given, that I know of.

34. So if a tube lined with a [11] non-electric, be rubb'd, little or no fire is obtained from it. What is collected from the hand in the downward rubbing stroke, entering the pores of the glass, and driving an equal quantity out of the inner surface into the non-electric lining: and the hand in passing up to take a second stroke, takes out again what had been thrown into the outer surface, and then the inner surface receives back again what it had given to the non-electric lining. Thus the particles of electrical fluid belonging to the inside surface go in and out of their pores every stroke given to the tube. Put a wire into the tube, the inward end in contact with the non-electric lining, so it will represent the Leyden bottle. Let a second person touch the wire while you rub, and the fire driven out of the inward surface when you give the stroke, will pass through him into the common mass, and return through him when the inner surface resumes its quantity, and therefore this new kind of Leyden bottle cannot so be charged. But thus it may: after every stroke, before you pass your hand up to make another, let the second person apply his finger to the wire, take the spark, and then withdraw his finger; and so on till he has drawn a number of sparks; thus will the inner surface be exhausted, and the outer surface charged; then wrap a sheet of gilt paper close round the outer surface, and grasping it in your hand you may receive a shock by applying the finger of the other hand to the wire: for now the vacant pores in the inner surface resume their quantity, and the overcharg'd pores in the outer surface discharge that overplus; the equilibrium being restored through your body, which could not be restored through the glass. [12] If the tube be exhausted of air, a non electric lining in contact with the wire is not necessary; for in vacuo, the electrical fire will fly freely from the inner surface, without a non-electric conductor: but air resists its motion; for being itself an electric per se, it does not attract it, having already its quantity. So the air never draws off an electric atmosphere from any body, but in proportion to the non-electrics mix'd with it: it rather keeps such an atmosphere confin'd, which from the mutual repulsion of its particles, tends to dissipation, and would immediately dissipate in vacuo.—And thus the experiment of the feather inclosed in a glass vessel hermetically sealed, but moving on the approach of the rubbed tube, is explained: When an additional quantity of the electrical fluid is applied to the side of the vessel by the atmosphere of the tube, a quantity is repelled and driven out of the inner surface of that side into the vessel, and there affects the feather, returning again into its pores, when the tube with its atmosphere is withdrawn; not that the particles of that atmosphere did themselves pass through the glass to the feather.——And every other appearance I have yet seen, in which glass and electricity are concern'd, are, I think, explain'd with equal ease by the same hypothesis. Yet, perhaps, it may not be a true one, and I shall be obliged to him that affords me a better.

35. Thus I take the difference between non electrics and glass, an electric per se, to consist in these two particulars. 1st, That a non-electric easily suffers a change in the quantity of the electrical fluid it contains. You may lessen its whole quantity by drawing out a part, which the whole body will again resume; but of glass you can only lessen the quantity contain'd in one of its surfaces; and not that, but by supplying an equal quantity at the same time to the other surface; so that the whole glass may always have the same quantity in the two surfaces, their two different quantities being added together. And this can only be done in glass that is thin; beyond a certain thickness we have yet no power that can make this change. And, 2dly, that the electrical fire freely removes from place to place, in and through the substance of a non-electric, but not so through the substance of glass. If you offer a quantity to one end of a long rod of metal, it receives it, and when it enters, every particle that was before in the rod, pushes its neighbour quite to the further end, where the overplus is discharg'd; and this instantaneously where the rod is part of the circle in the experiment of the shock. But glass, from the smallness of its pores, or stronger attraction of what it contains, refuses to admit so free a motion; a glass rod will not conduct a shock, nor will the thinnest glass suffer any particle entring one of its surfaces to pass thro' to the other.

36. Hence we see the impossibility of success, in the experiments propos'd, to draw out the effluvial virtues of a non-electric, as cinnamon for instance, and mixing them with the electrical fluid, to convey them with that into the body, by including it in the globe, and then applying friction, etc. For though the effluvia of cinnamon, and the electrical fluid should mix within the globe, they would never come out together through the pores of the glass, and so go to the prime conductor; for the electrical fluid itself cannot come through; and the prime conductor is always supply'd from the cushion, and that from the floor. And besides, when the globe is filled with cinnamon, or other non-electric, no electrical fluid can be obtain'd from its outer surface, for the reason before-mentioned. I have try'd another way, which I thought more likely to obtain a mixture of the electrical and other effluvia together, if such a mixture had been possible. I placed a glass plate under my cushion, to cut off the communication between the cushion and floor; then brought a small chain from the cushion into a glass of oil of turpentine, and carried another chain from the oil of turpentine to the floor, taking care that the chain from the cushion to the glass touch'd no part of the frame of the machine. Another chain was fix'd to the prime conductor, and held in the hand of a person to be electrised. The ends of the two chains in the glass were near an inch distant from each other, the oil of turpentine between. Now the globe being turn'd, could draw no fire from the floor through the machine, the communication that way being cut off by the thick glass plate under the cushion: it must then draw it through the chains whose ends were dipt in the oil of turpentine. And as the oil of turpentine being an electric per se, would not conduct what came up from the floor, was obliged to jump from the end of one chain, to the end of the other, through the substance of that oil, which we could see in large sparks; and so it had a fair opportunity of seizing some of the finest particles of the oil in its passage, and carrying them off with it: but no such effect followed, nor could I perceive the least difference in the smell of the electrical effluvia thus collected, from what it has when collected otherwise; nor does it otherwise affect the body of a person electrised. I likewise put into a phial, instead of water, a strong purgative liquid, and then charged the phial, and took repeated shocks from it, in which case every particle of the electrical fluid must, before it went through my body, have first gone through the liquid when the phial is charging, and returned through it when discharging, yet no other effect followed than if it had been charged with water. I have also smelt the electrical fire when drawn through gold, silver, copper, lead, iron, wood, and the human body, and could perceive no difference; the odour is always the same where the spark does not burn what it strikes; and therefore I imagine it does not take that smell from any quality of the bodies it passes through. And indeed, as that smell so readily leaves the electrical matter, and adheres to the knuckle receiving the sparks, and to other things; I suspect that it never was connected with it, but arises instantaneously from something in the air acted upon by it. For if it was fine enough to come with the electrical fluid through the body of one person, why should it stop on the skin of another?

But I shall never have done, if I tell you all my conjectures, thoughts, and imaginations, on the nature and operations of this electrical fluid, and relate the variety of little experiments we have try'd. I have already made this paper too long, for which I must crave pardon, not having now time to make it shorter. I shall only add, that as it has been observed here that spirits will fire by the electrical spark in the summer time, without heating them, when Fahrenheit's thermometer is above 70; so, when colder, if the operator puts a small flat bottle of spirits in his bosom, or a close pocket, with the spoon, some little time before he uses them, the heat of his body will communicate warmth more than sufficient for the purpose.

ADDITIONAL EXPERIMENT, proving that the Leyden Bottle has no more electrical Fire in it when charged, than before; nor less when discharged: That in discharging, the Fire does not issue from the Wire and the Coating at the same Time, as some have thought, but that the Coating always receives what is discharged by the Wire, or an equal Quantity; the outer Surface being always in a negative State of Electricity, when the inner Surface is in a positive State.

Place a thick plate of glass under the rubbing cushion, to cut off the communication of electrical fire from the floor to the cushion; then, if there be no fine points or hairy threads sticking out from the cushion, or from the parts of the machine opposite to the cushion, (of which you must be careful) you can get but a few sparks from the prime conductor, which are all the cushion will part with.

Hang a phial then on the prime conductor, and it will not charge, tho' you hold it by the coating.——But

Form a communication by a chain from the coating to the cushion, and the phial will charge.

For the globe then draws the electrical fire out of the outside surface of the phial, and forces it, through the prime conductor and wire of the phial, into the inside surface.

Thus the bottle is charged with its own fire, no other being to be had while the glass plate is under the cushion.

Hang two cork balls by flaxen threads to the prime conductor; then touch the coating of the bottle, and they will be electrified and recede from each other.

For just as much fire as you give the coating, so much is discharged through the wire upon the prime conductor, whence the cork balls receive an electrical atmosphere. But

Take a wire bent in the form of a C, with a stick of wax fixed to the outside of the curve, to hold it by; and apply one end of this wire to the coating, and the other at the same time to the prime conductor, the phial will be discharged; and if the balls are not electrified before the discharge, neither will they appear to be so after the discharge, for they will not repel each other.

Now if the fire discharged from the inside surface of the bottle through its wire, remained on the prime conductor, the balls would be electrified and recede from each other.

If the phial really exploded at both ends, and discharged fire from both coating and wire, the balls would be more electrified and recede farther: for none of the fire can escape, the wax handle preventing.

But if the fire, with which the inside surface is surcharged, be so much precisely as is wanted by the outside surface, it will pass round through the wire fixed to the wax handle, restore the equilibrium in the glass, and make no alteration in the state of the prime conductor.

Accordingly we find, that if the prime conductor be electrified, and the cork balls in a state of repellency before the bottle is charged, they continue so afterwards. If not, they are not electrified by that discharge.
